CorvAircraft> keeping baffles or shrouds from core engine?

[Dave Morris "BigD"]

Look on this page:
http://www.corvair.com/user-cgi/catalog.cgi?function=previous
Make sure he gives you #19 and #63 1/2.  Those
are heavier pieces of sheet metal with complex
curves that you won't be able to duplicate

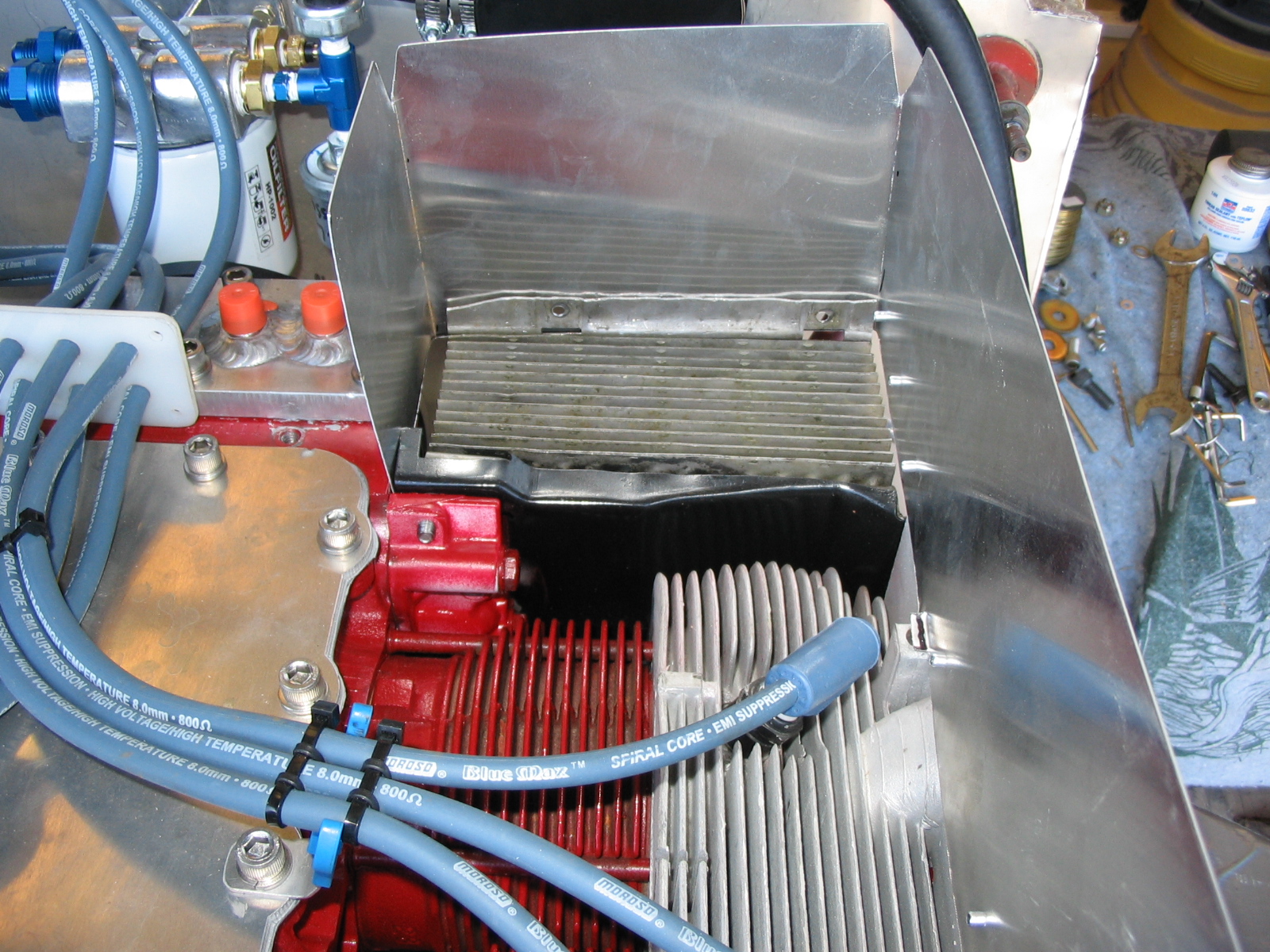

easily.  I have a photo of the one next to my oil
cooler here:
http://www.davemorris.com/Photos/Dragonfly%20Corvair%20Baffling/Baffling5.jpg

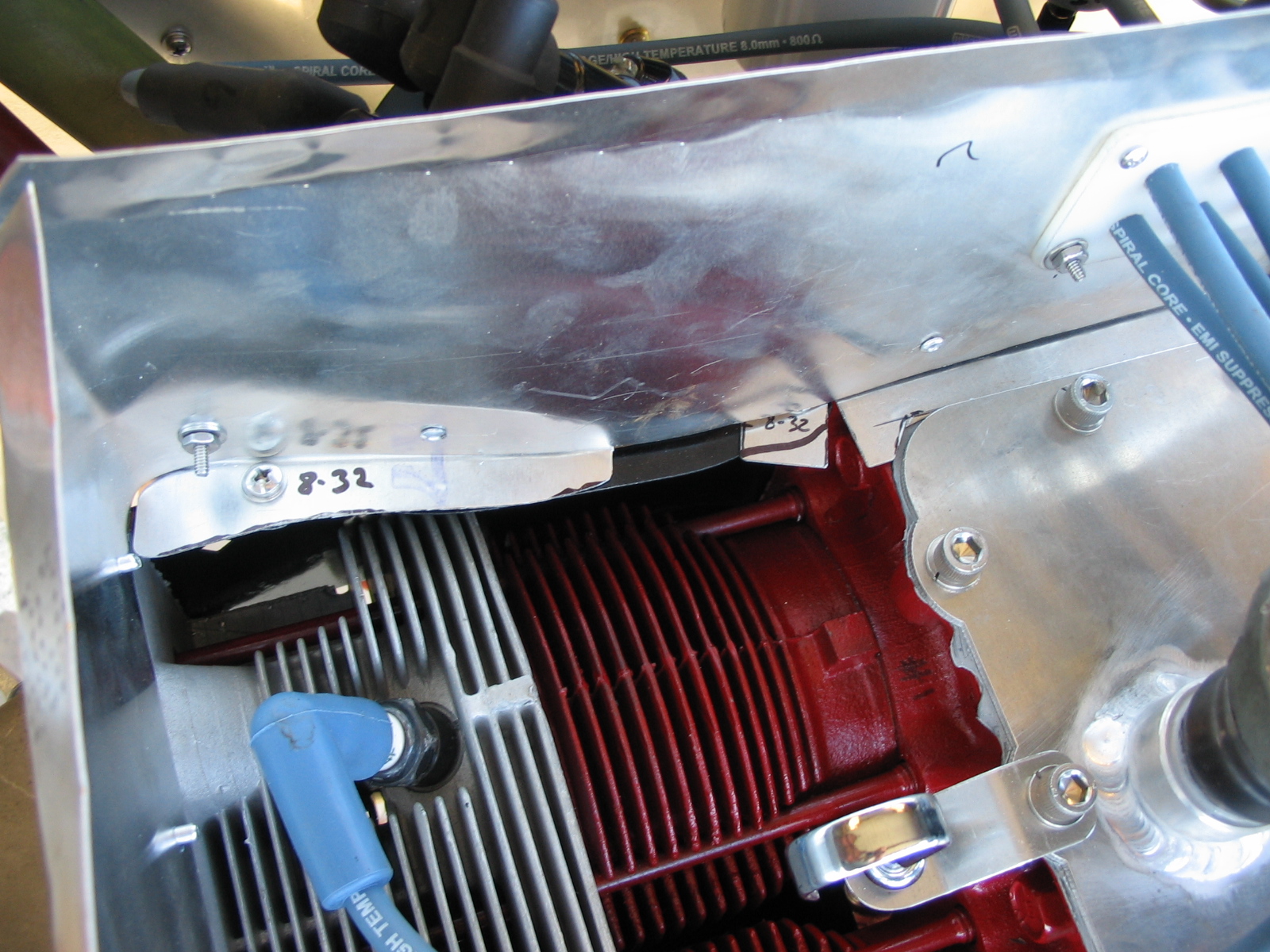

The other side forms a nice base on which to
screw down your own baffling.  See:
http://www.davemorris.com/Photos/Dragonfly%20Corvair%20Baffling/Baffling2.jpg
where the 8-32 is marked is the #19 piece from the Clark's catalog.

Also keep the under-cylinder baffles with your
pushrod tubes when you store them, so you cannot
forget to install the baffles first.  I set the
baffles aside and forgot them until it was way
too late.  Also, if he doesn't have the little
spring clips (C498 Clarks), order them
now.  Those are some of the little $2 items that
if you don't have them, make more than $2 worth of frustration.

Dave Morris


At 10:54 AM 5/1/2006, you wrote:
>My core is in another state; the seller is
>wondering what all he needs to bring with him
>when we meet halfway.  Do I understand correctly
>that I want the "baffles" which are under the
>pushrods, but the "shrouds"  ( for the top
>cooling fan, heater boxes, etc.) are not necessary?
>
>   Thanks
>
>
>---------------------------------
